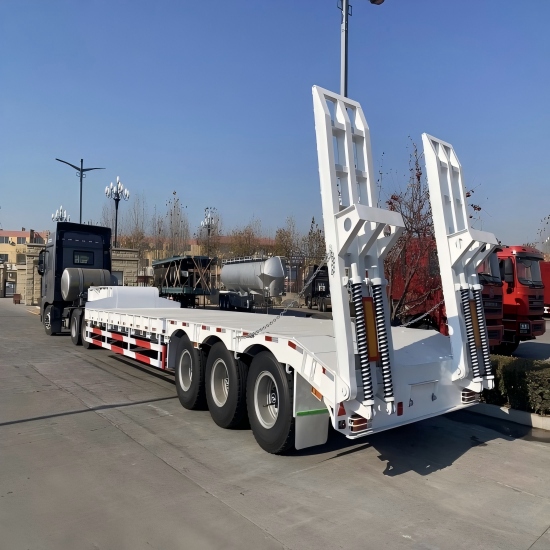

60 Ton Semi Lowbed Trailer
What makes this 3 axle 60 ton semi lowbed trailer different is its main beam, which is made of high-strength steel material Q345B, which exceeds the performance of other any steel plates material.
Price: 13200.00 usd
Application: transport various types of construction machinery and equipment
Shipping Terms: bulk carrier, container and Ro-Ro
Payment Terms: TT, Western Union, Offshore Account
Description
Description:
Yingchi 60 ton semi lowbed trailer is a trailer specially used to transport heavy machinery and engineering vehicles. For example: excavators, bulldozers, crawler loaders, harvesters and other large or irregular heavy objects.
This type of lowbed semi trailer has a wide range of applications and transportation functions, and can transport heavy goods to the destination quickly and efficiently. It has 2 axle, 3 axle, 4 axle, 5 axle, 3 line 6 axle, 4 line 8 axle, and pull-out design structures for you to choose from.
We are a professional semi trailer manufacturer, especially in semi lowbed trailer. We have rich production experience and export volume. We serve customers in more than 80 countries in the world and can customize according to your specific needs.
Specification:
Overall Dimension: 13000mm*3000mm*3500mm
Loading Capacity: 60 ton
Main Beam: height 500mm, upper plate 20mm, middle plate 12mm, lower plate 20mm, material Q345B steel

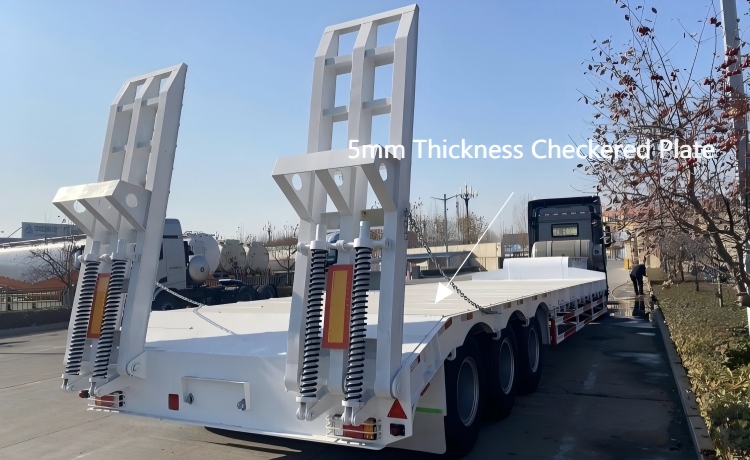

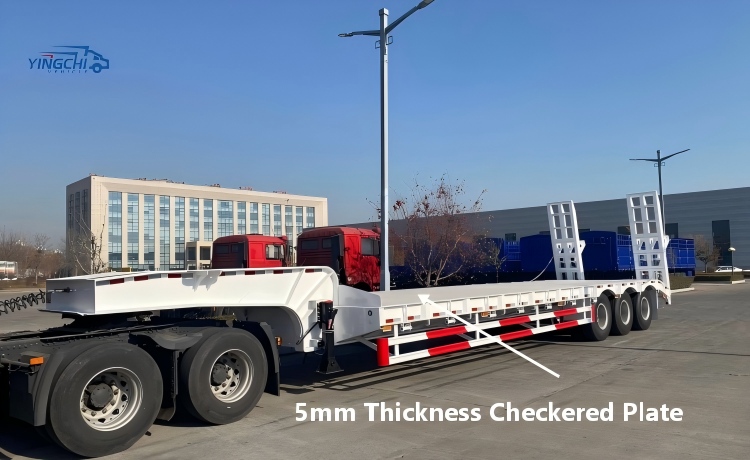

Bottom Platform: 5mm thick checkered plate

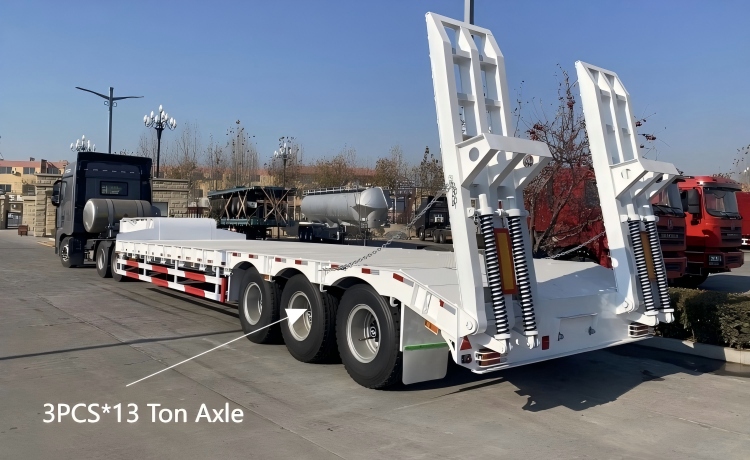

Axle: 3*13T/16T, FUWA/BPW brand
Rim: 8.0-20
Tire: 12.00R22.5
Suspension: mechanical suspension
Spring Leaf: 90(w)mmx13(thickness)mmx10 layers
King Pin: JOST brand 2.0 or 3.5 inch

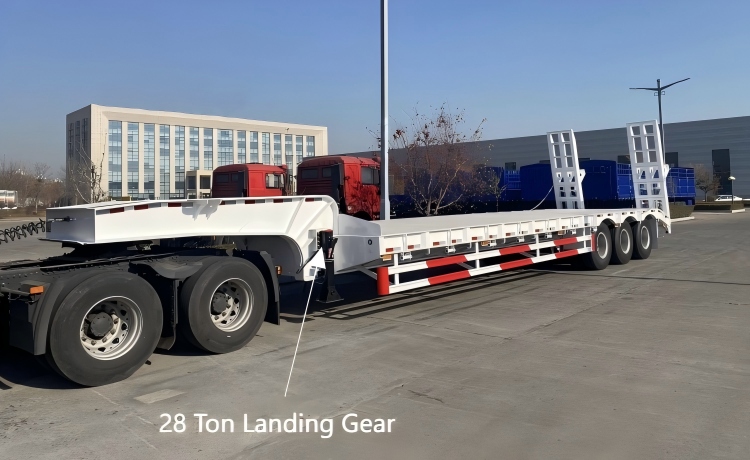

Landing Gear: JOST brand 28 tons

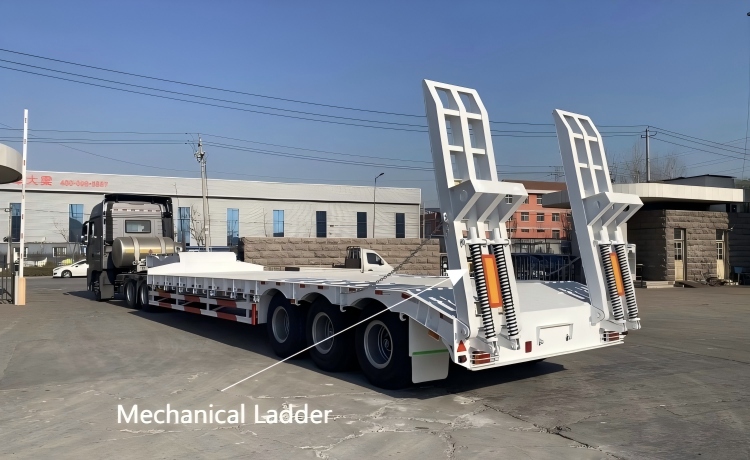

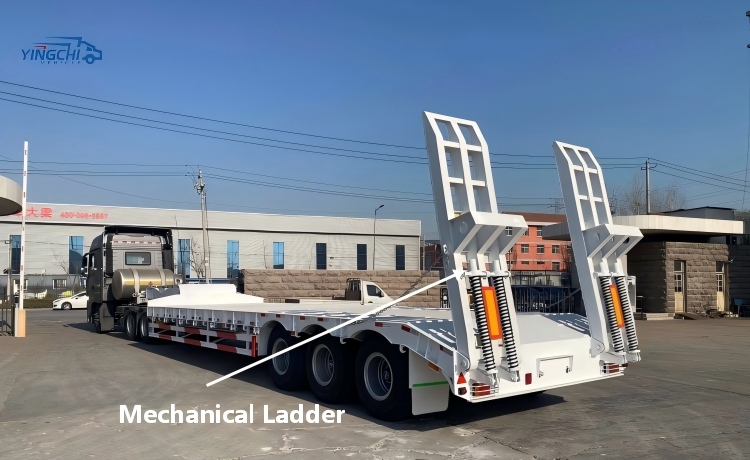

Ramp: mechanical spring ramp
ABS: optional
Valve: WABCO
For more specifications or customized options, please contact us.
Advantages:
1. We use Q345B high-strength steel plate to manufacture the main beam of the 60 ton semi lowbed trailer, which can meet the requirements of concentrated force, collision resistance and heavy pressure resistance.
2. Equipped with high-quality spare parts, ensure that the lowbed semi trailers sold have a long service life and avoid unnecessary maintenance.
3. The mechanical ramp facilitates the rapid loading and unloading of goods, has a strong carrying capacity, can adapt to all goods to be transported, and will not deform or break.
4. Polyurethane paint, more beautiful appearance, longer paint duration.
