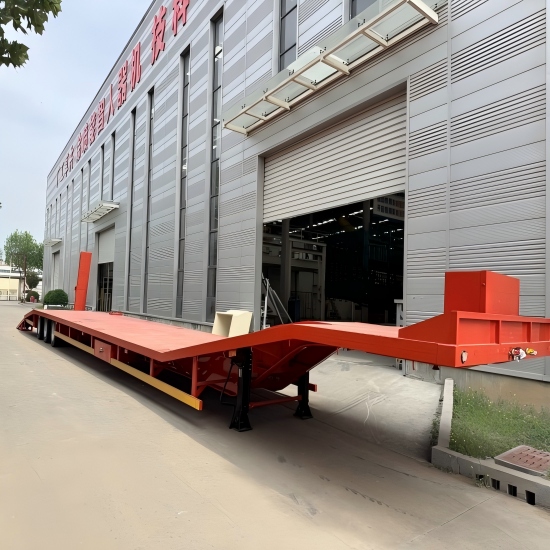

Tri Axle Low Loader Trailer
The chassis and design structure of the tri axle low loader trailer we sell are more sturdy and durable. Its compression resistance and anti-turbulence ability are better than other factories.
Price: 13200.00 usd
Application: transport various types of construction machinery and equipment
Shipping Terms: bulk carrier, container and Ro-Ro
Payment Terms: TT, Western Union, Offshore Account
Description
Description:
Tri axle low loader trailer play a vital role in the transportation industry, facilitating the transportation of heavy or irregular cargo that conventional trailers cannot accommodate and transport. This is why low loader trailers are increasingly favored and purchased by customers.
This kind of lowbed trailer for sale has a wide range of applications and usage functions. They have unique advantages in transporting goods, such as: bulldozers, excavators, loaders, harvesters, rail vehicles, large steel plates, etc.
You can choose our 2 axle, 3 axle, 4 axle, 5 axle, mechanical ladder, hydraulic folding ladder lowbed semi trailer for sale with a load capacity of 30-200 tons for you to choose. At the same time, we also have more customized options for your reference.
Specification:
Model: Tri Axle Low loader Trailer for Sale
Overall Dimension: 13000mm*3000mm*3500mm
Loading Capacity: 60 ton
Main Beam: height 500mm, upper plate 20mm, middle plate 12mm, lower plate 20mm, material Q345B steel

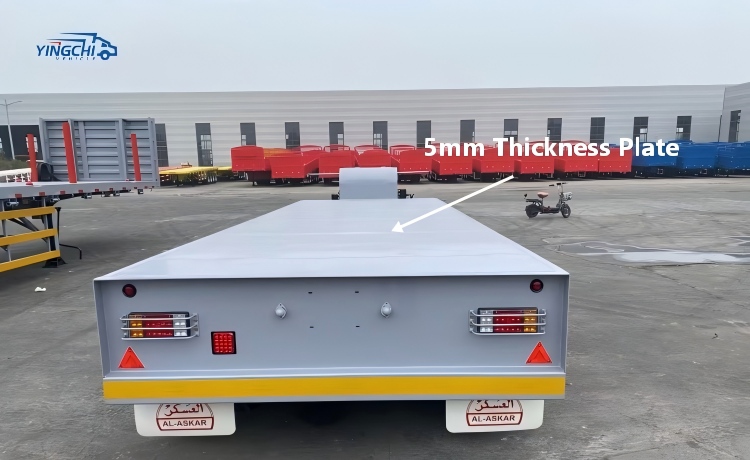

Bottom Platform: 5mm thick checkered plate

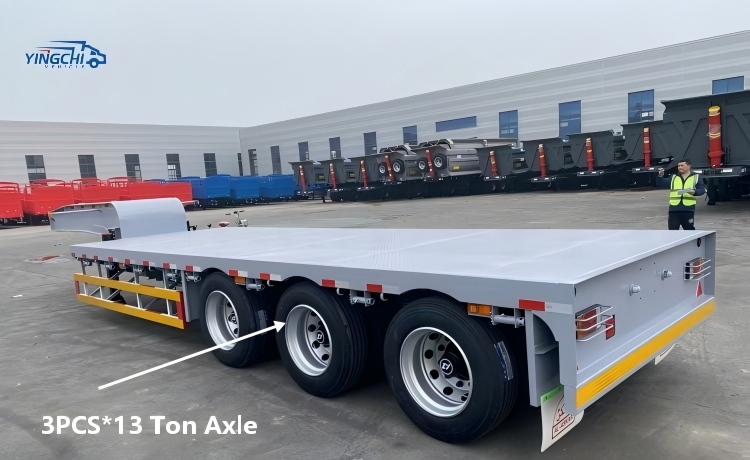

Axle: 3 axle*13 tons
Rim: 8.0-20
Tire: 12.00R22.5
Suspension: mechanical suspension
Spring Leaf: 90(w)mmx13(thickness)mmx10 layers
King Pin: JOST brand 2.0 or 3.5 inch

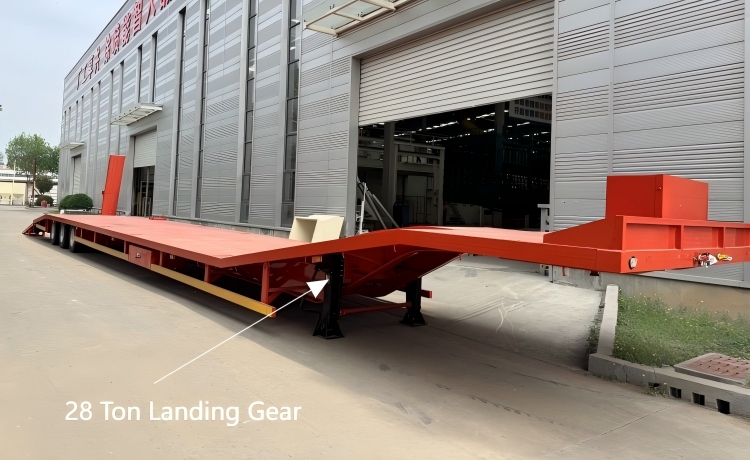

Landing Gear: JOST brand 28 tons

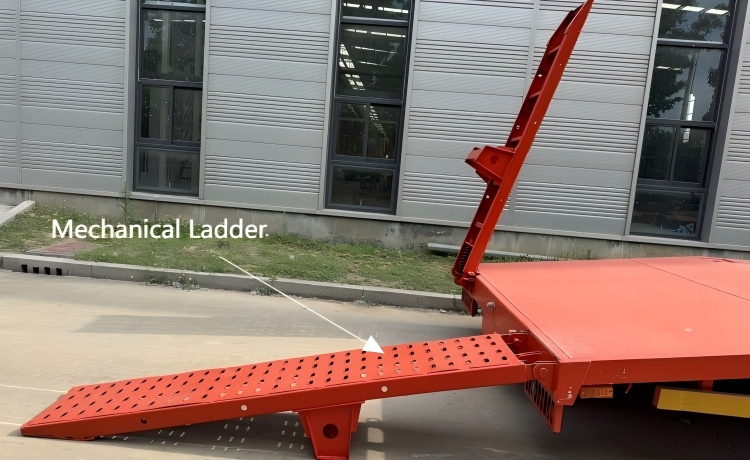

Ramp: mechanical spring ramp
ABS: optional
Valve: WABCO

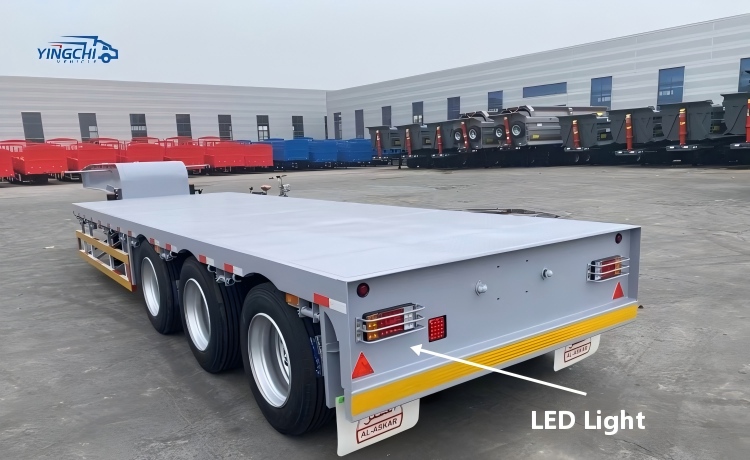

Light: LED
For more specifications or customized options, please contact us.
Advantages:
1. The main beam is reinforced for higher load-bearing capacity.
2. The side beam is an “H” type design structure, which is strong and durable to avoid deformation and breakage.
3. Strict factory quality inspection ensures that all lowbed trailers are intact.
4. Before transportation, spray waterproof wax to avoid rust and corrosion.
